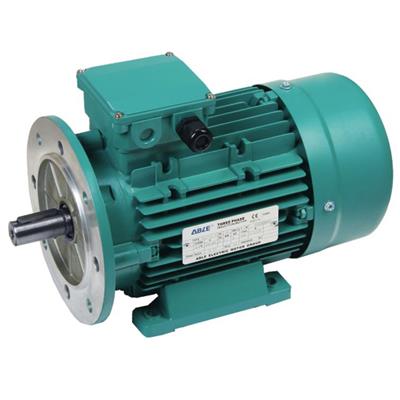

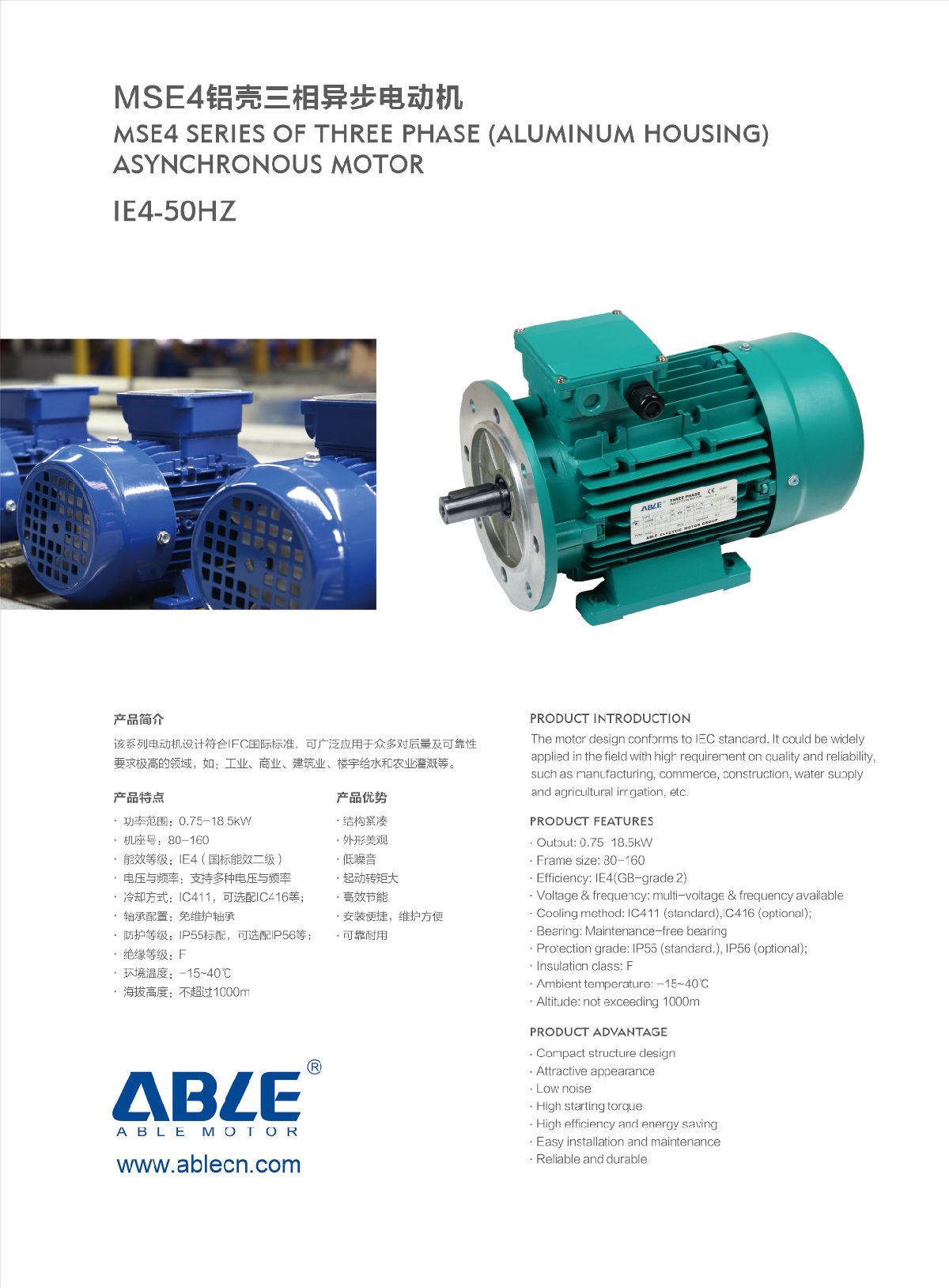

MSE4 Series Aluminum Housing Three Phase Induction Motor
Introduction

Motor Housing: Aluminum

Output Power: 0.75 kW – 18.5 kW

Frame Size: IEC 80 – 160

Poles: 2, 4, 6, 8

Voltage: 220/380V, 380/660V, 230/400V, 400/690V(Customized available)

Frequency: 50 & 60 Hz

Insulation Class: IP 55

Efficiency: IE4
